Grade 14 Low Maintenance Hinges – 102 x 76 x 3.4mm

Grade 14 Low Maintenance Hinges – 102 x 76 x 3.4mm

The Grade 14 Low Maintenance Hinges are heavy-duty architectural hinges designed for demanding commercial and fire-rated door applications. Manufactured from durable Grade 201 stainless steel, these hinges provide exceptional strength, smooth operation, and long-term reliability for high-traffic environments.

Available in both Square and Radius profiles, the hinges feature a self-lubricating mechanism that reduces maintenance requirements while ensuring consistent performance over time. Suitable for doors weighing up to 160kg, they are ideal for healthcare, education, commercial, and public access buildings where durability and compliance are essential.

Key Features

• Heavy-duty Grade 14 hinge construction
• Manufactured from Grade 201 stainless steel
• Available in square and radius profiles
• Self-lubricating hinge mechanism
• Low maintenance operation
• Suitable for doors up to 160kg
• Standard Vier fitting template compatibility
• Designed for high-traffic commercial applications
• Suitable for fire-rated door installations

Available Variants

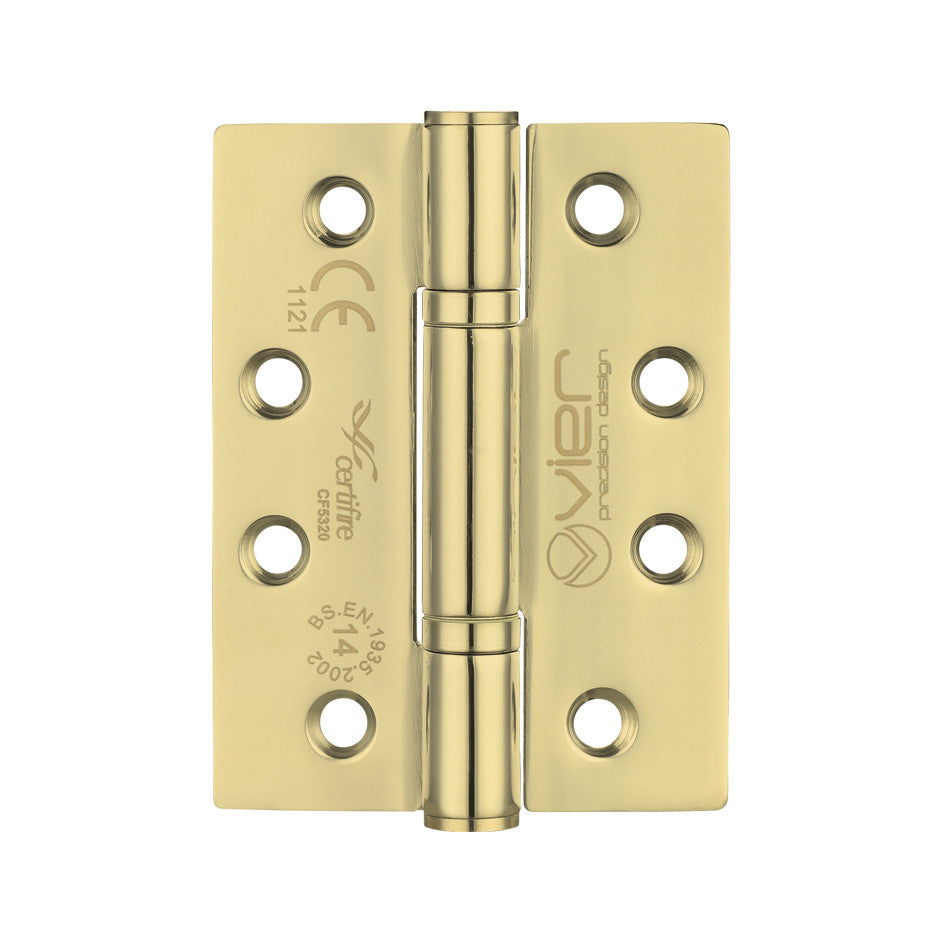

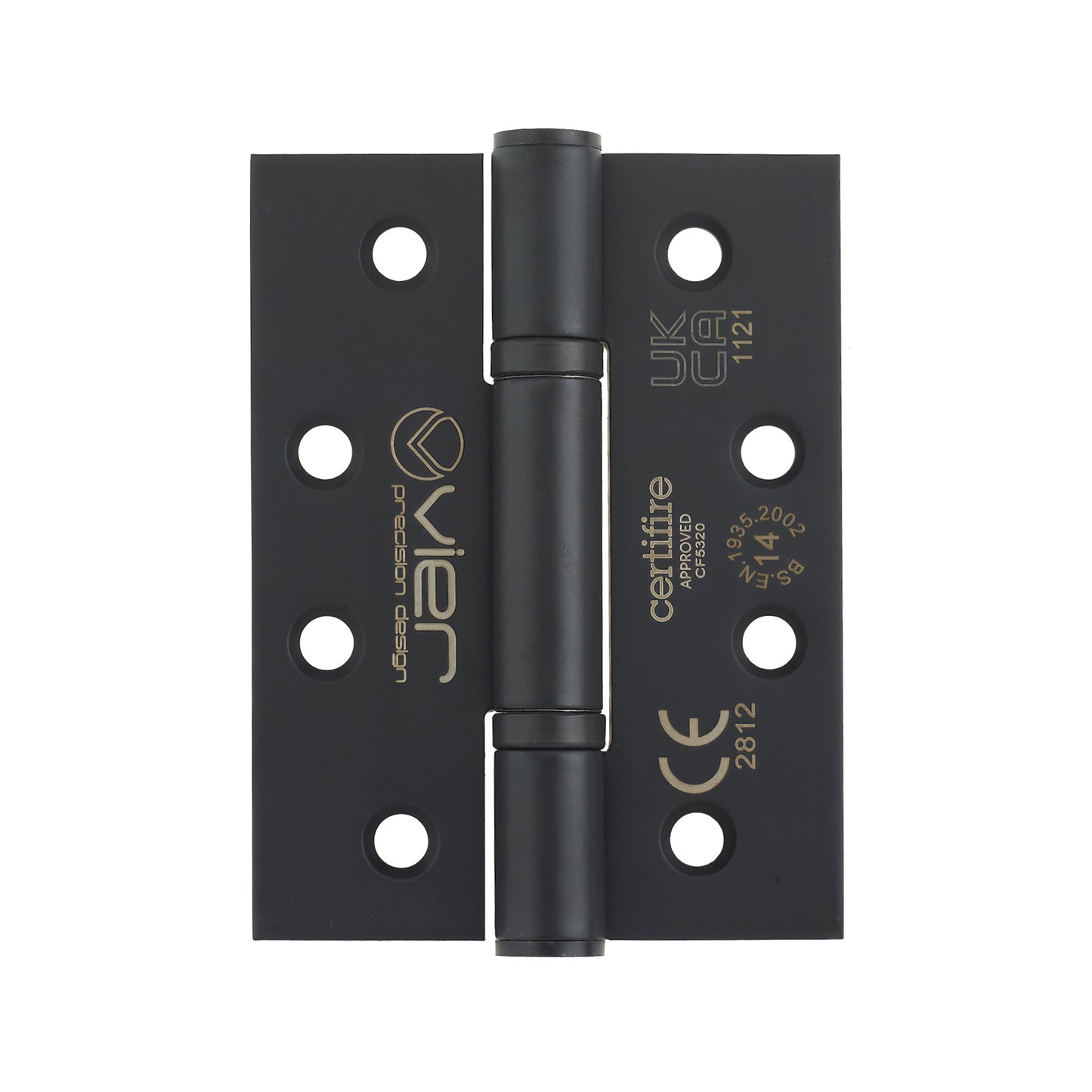

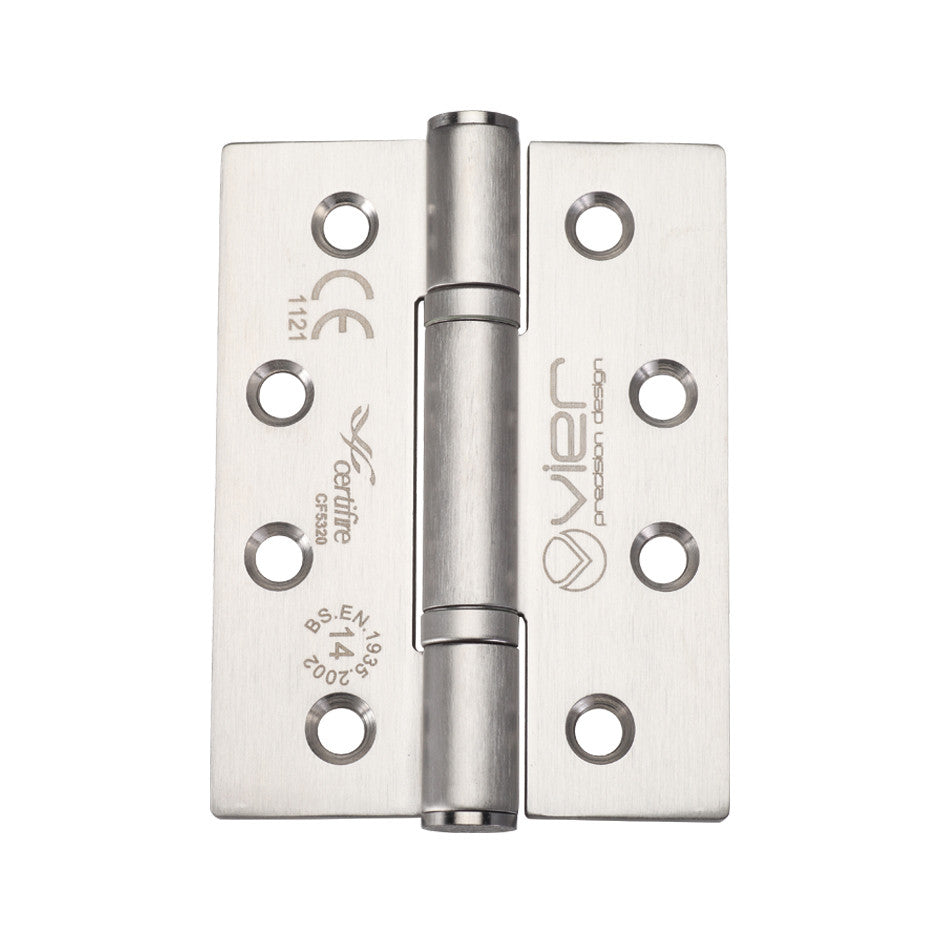

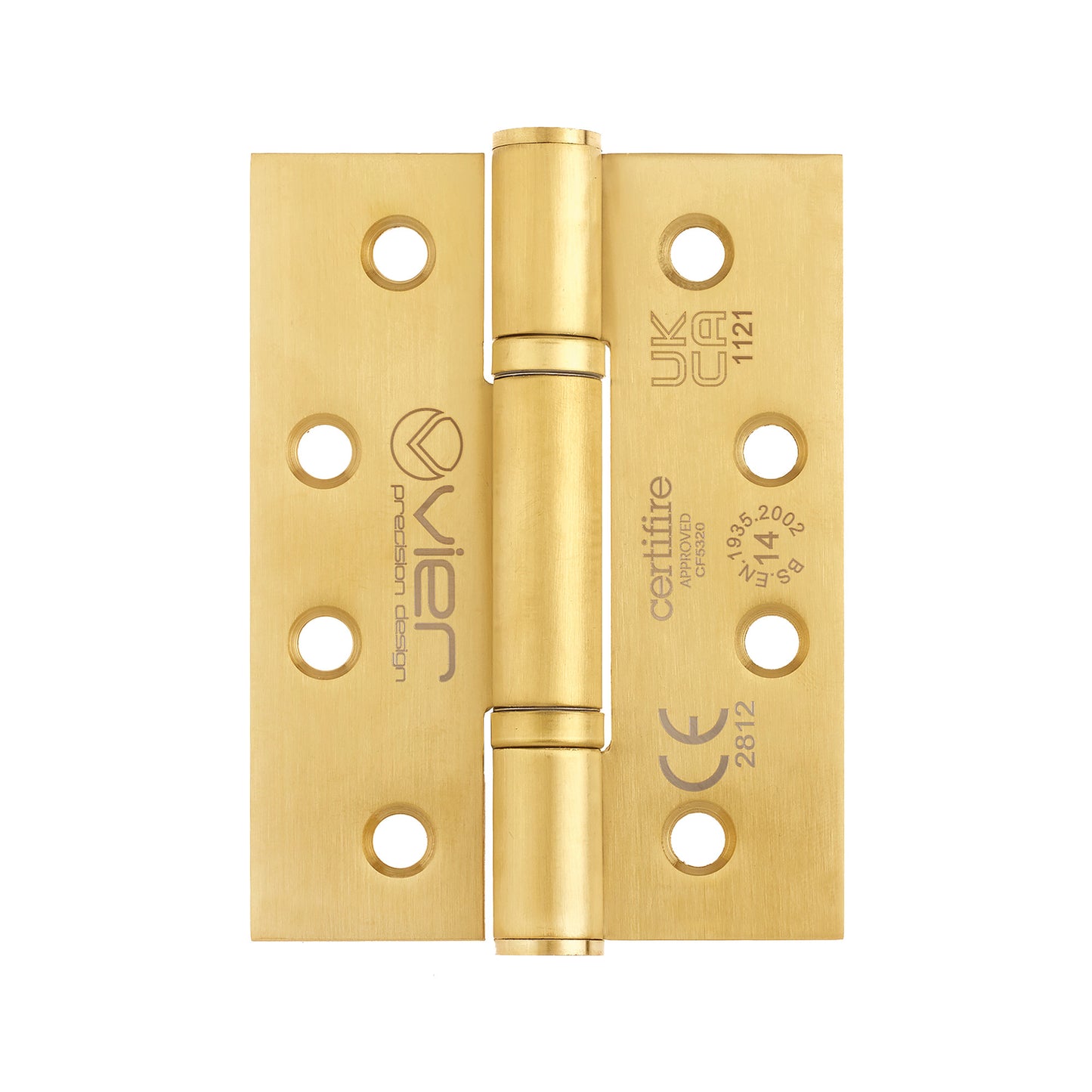

• Square Profile – clean modern square edge design

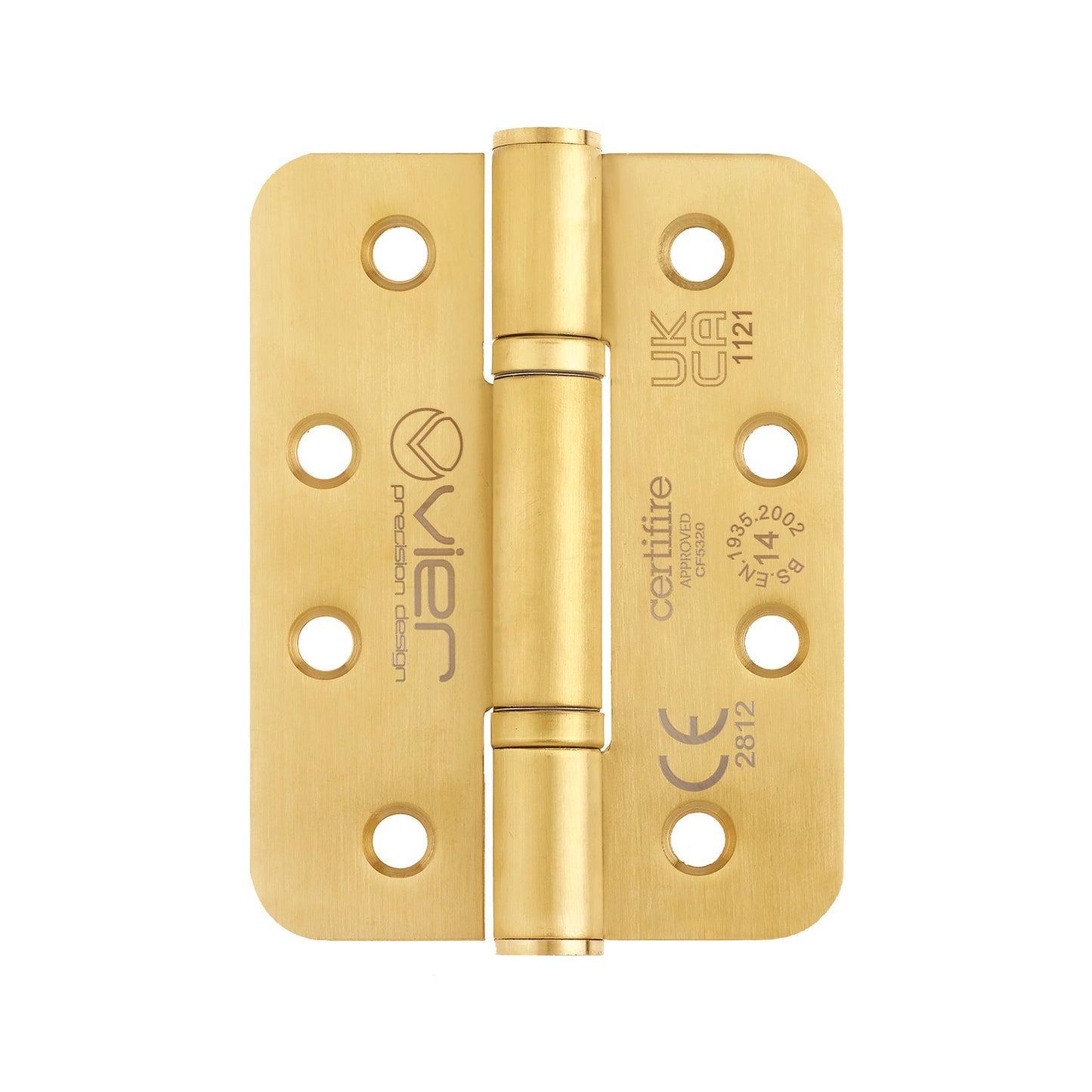

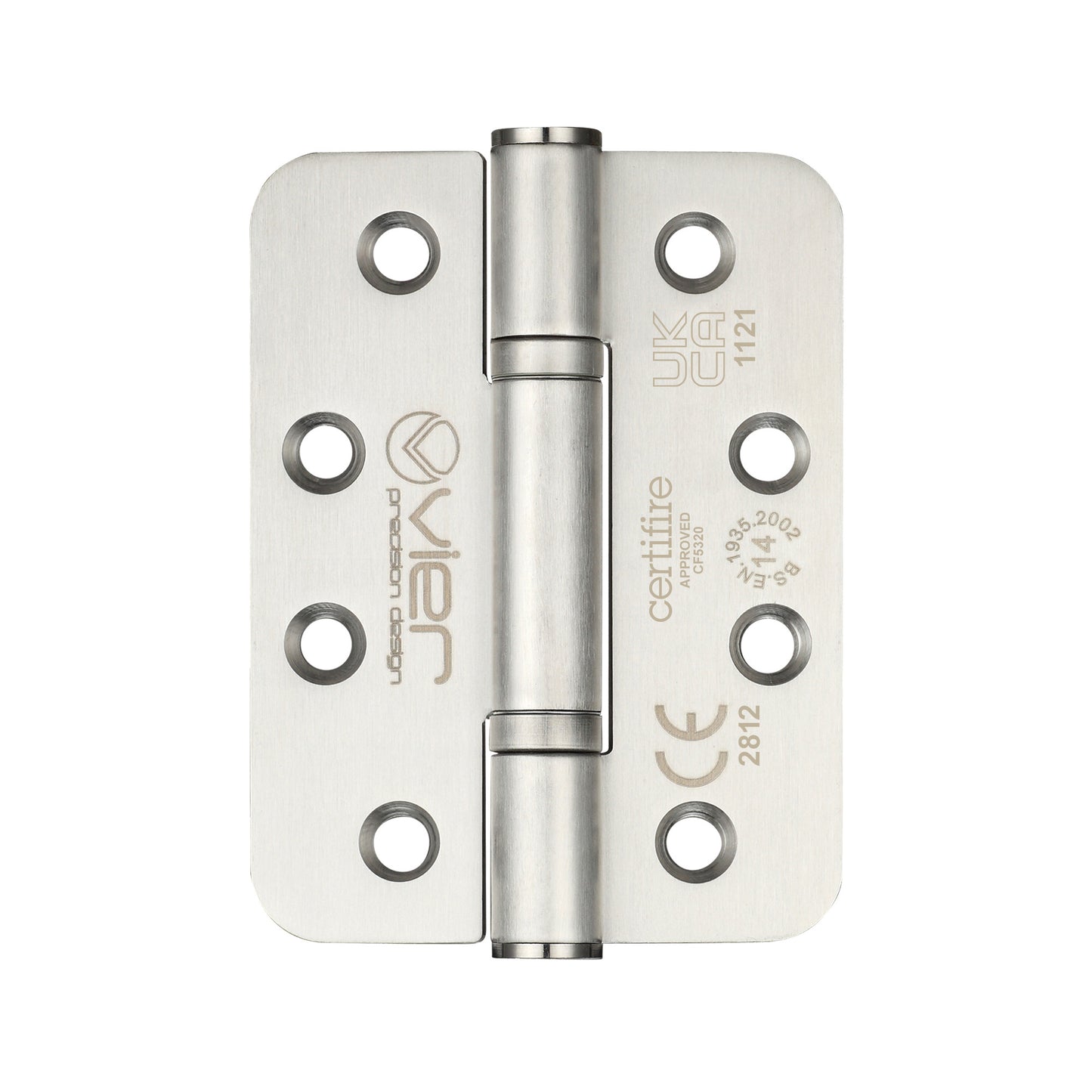

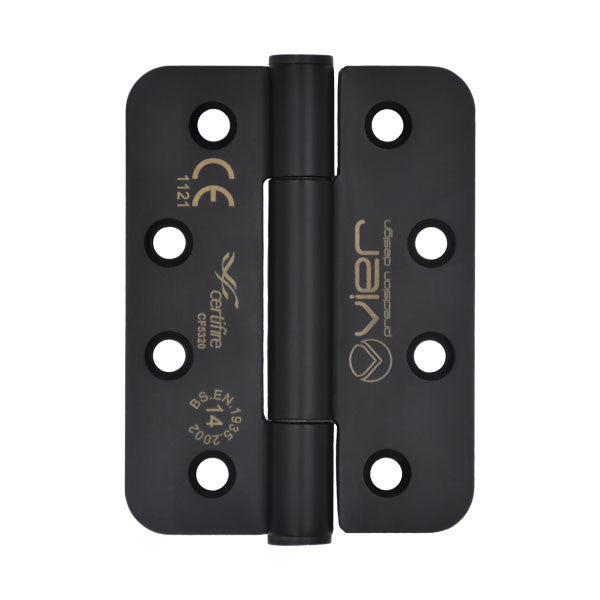

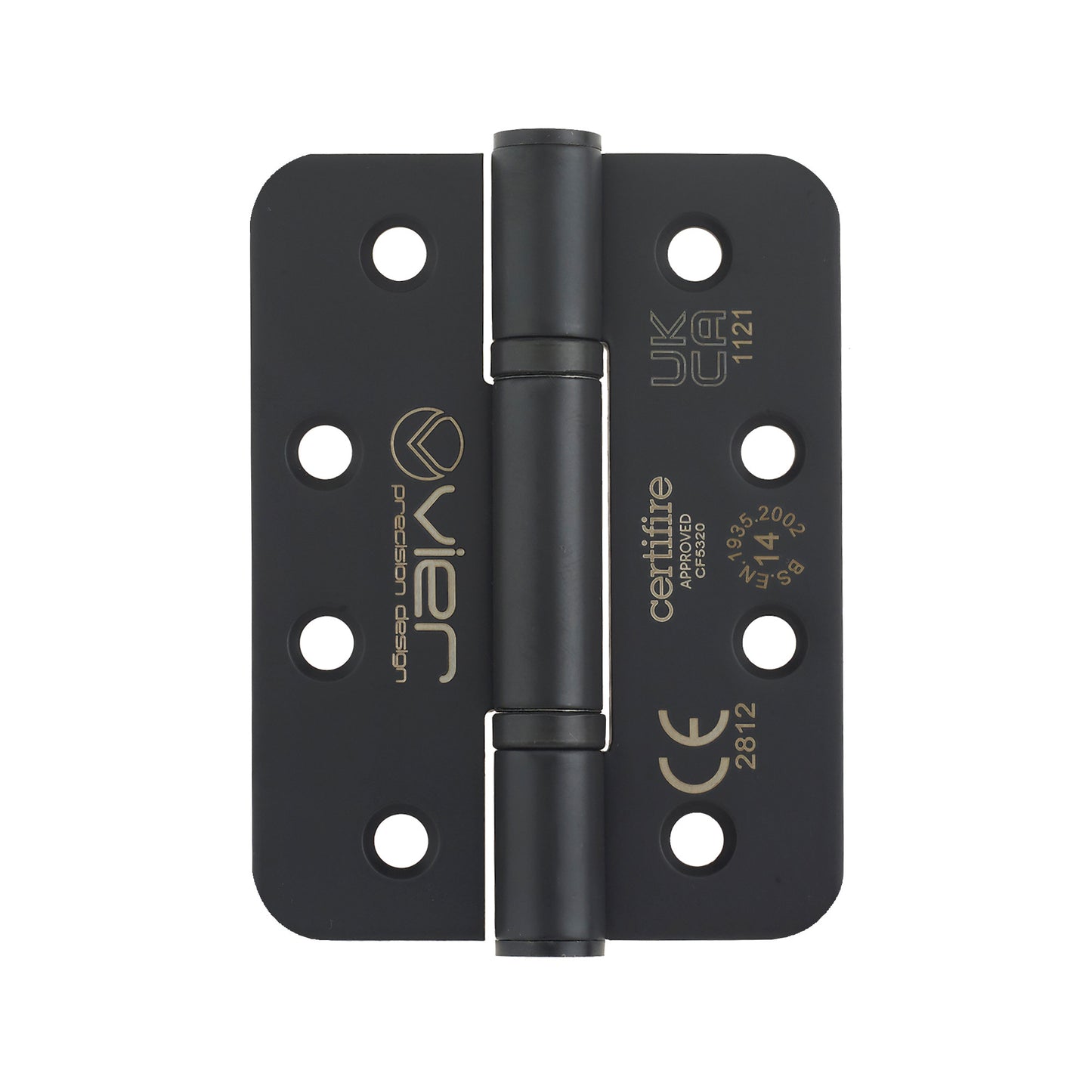

• Radius Profile – softer radiused edge styling

Available Finishes

• PVD
• PVD Bronze
• PVD Satin Brass
• Powder Coat Black
• Satin Stainless

Specifications

• Product Type: Low Maintenance Hinge
• Hinge Size: 102 x 76 x 3.4mm
• Material: Grade 201 Stainless Steel
• Maximum Door Weight: 160kg
• Operation: Self-Lubricating
• Maintenance: Low Maintenance Design
• Fitting Template: Standard Vier
• Compliance Standard: BS EN 1935:2002
• Grade: Grade 14
• Fire Rating: FD120 / FD240
• Certifications: CE2812, CF5320, UKCA 1121

Suitable Applications

• Commercial buildings
• Hospitals and healthcare facilities
• Educational institutions
• Public access buildings
• Heavy-duty fire-rated doors
• High-traffic environments
• Modern architectural projects

Meta Description

Heavy-duty Grade 14 low maintenance hinges in square and radius profiles. Manufactured from Grade 201 stainless steel with self-lubricating operation and suitable for FD120 and FD240 fire-rated doors up to 160kg.
