83 Series (Supplied Without Cylinder) - High Security Padlock

ABUS 83 Series (Supplied Without Cylinder) – Critical Infrastructure High Security Padlock Range with LPCB Approved Cylinder Options (All Variants)

The ABUS 83 Series supplied without cylinder represents the highest tier of the ABUS padlock range, delivering uncompromising security performance at CEN Grade 4, 5, and 6 (Security Rating Level 10) across all variants, purpose-built for the protection of high-security sites, critical national infrastructure, and high-value assets. Built from hardened special steel with NANO PROTECT™ coating for exceptional resistance to harsh conditions, this range is engineered to defeat the most advanced physical attack methods while accommodating a choice of ABUS patented, registered high-security cylinder and key systems selected and supplied to the end user.

Designed with a double bolted locking mechanism, cylinder protection against drilling, bumping, and pulling, and an optional cylinder protection cap against moisture and dust, the 83 Series without cylinder provides a robust, adaptable security platform for the most demanding applications. Compatible LPCB approved cylinder options include the ABUS Bravus, Vitess, and Zolit systems, allowing the end user to specify the appropriate patented key system for their installation. Available in standard open shackle, closed shackle, and sliding bolt variants — including the substantial 93RK monoblock models — and with removable shackle options on selected variants, the range covers gates, barriers, doors, containers, and high-security perimeter fencing across critical national infrastructure and commercial environments.

Key Features

• EN12320 CEN Grades 4, 5, and 6 — Security Rating Level 10 across all variants
• Hardened special steel body and shackle with NANO PROTECT™ coating for extreme corrosion and attack resistance
• Double bolted locking mechanism for enhanced security and pull resistance
• Cylinder protected against drilling, bumping, and pulling open
• Optional cylinder protection cap against moisture and dust
• Supplied without cylinder — fitted with ABUS patented high-security cylinder and key system by end user
• LPCB approved cylinder options: ABUS Bravus, Vitess, and Zolit systems
• Available in standard open shackle, closed shackle, and sliding bolt (93RK) variants
• Removable shackle available on 83/60-5 and 83/70 variants
• Integration into master key systems supported across all variants
• Key retaining function standard on 83/60-5, 83/70, and 83CS/70 (can be changed to non-key retaining)
• High security classification across all variants
• Suitable for indoor and outdoor use

Variant Options

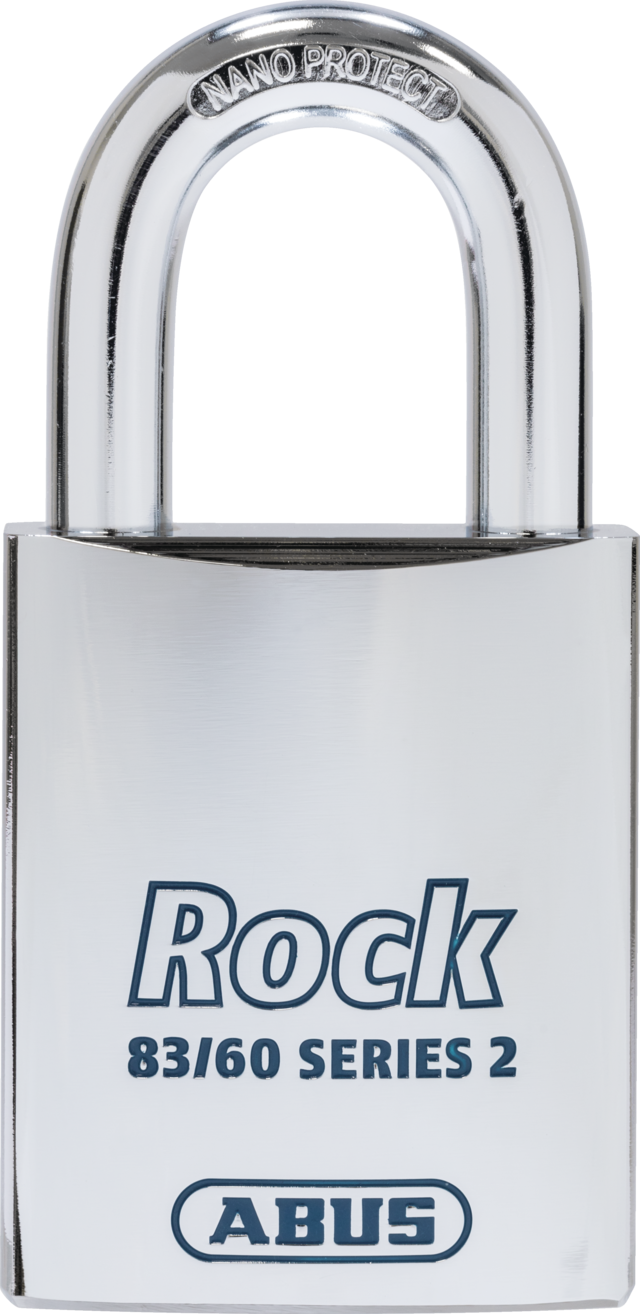

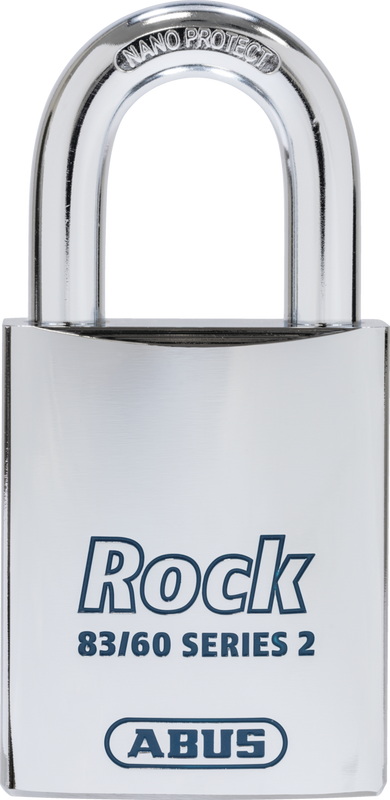

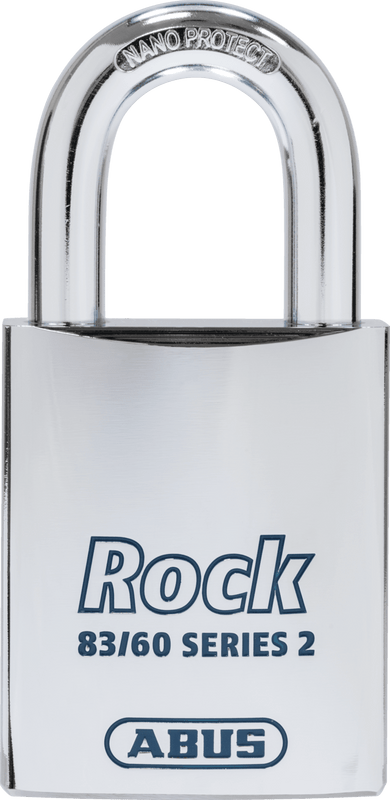

• 83/60-5 (w/o cylinder): Standard open shackle, hardened steel body, removable shackle
• 83/70 (w/o cylinder): Standard open shackle, hardened steel body, removable shackle
• 83CS/70 (w/o cylinder): Closed shackle, hardened steel body

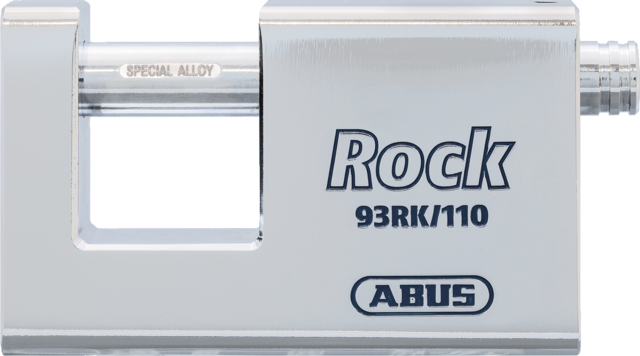

• 93RK/110 (w/o cylinder): Sliding bolt monoblock, hardened steel body with NANO PROTECT™

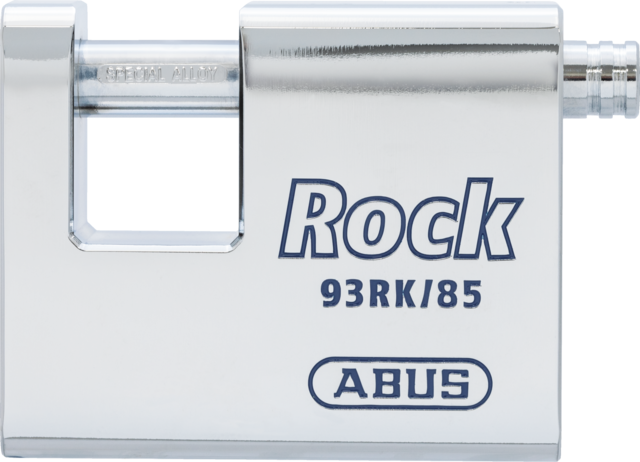

• 93RK/85 (w/o cylinder): Sliding bolt monoblock, hardened steel body with NANO PROTECT™

Ideal Applications

• Critical national infrastructure protection
• High-security perimeter gates and fencing
• Barriers, doors, and access control points
• Containers and high-value asset storage
• Industrial and commercial sites requiring LPCB approved locking solutions

Specifications

• Product Type: High Security Padlock (Supplied Without Cylinder)
• Locking Type: Keyed (ABUS Patented High Security Cylinder — supplied separately)
• Security Rating: Level 10 (all variants)
• EN12320 CEN Grade: 4, 5, and 6
• Indoor Use: Yes
• Outdoor Use: Yes
• Marine Use: No
• Safety Use: No
• High Security Use: Yes (all variants)
• Material – Body: Hardened Steel (83/60-5, 83/70, 83CS/70) | Hardened Steel with NANO PROTECT™ (93RK/110, 93RK/85)
• Colours: Chrome (83/60-5, 83/70, 83CS/70) | Silver (93RK/110, 93RK/85)
• Material – Shackle: Hardened Steel with NANO PROTECT™ (all variants)
• Shackle Type: Standard Open (83/60-5, 83/70) | Closed (83CS/70) | Sliding Bolt (93RK/110, 93RK/85)
• Removable Shackle: Yes (83/60-5, 83/70) | No (83CS/70, 93RK/110, 93RK/85)
• Keyed Alike Option: No (83/60-5, 93RK/110) | Yes (83/70, 83CS/70, 93RK/85)
• Master Key Option: Yes (all variants)
• Key Retaining: Yes — 83/60-5, 83/70, 83CS/70 (can be changed to non-key retaining) | No (93RK/110, 93RK/85)
• Key Type: N/A (no cylinder supplied)
• Keys Supplied: None

Dimensions & Weight (All Variants)

• 83/60-5 (w/o cylinder): 60 × 123 × 28 mm | 882 g | Ø 12 mm | Clearance: 27.5 × 38 mm
• 83/70 (w/o cylinder): 70 × 128 × 30 mm | 1,205 g | Ø 15 mm | Clearance: 29.5 × 38.5 mm
• 83CS/70 (w/o cylinder): 70 × 112 × 29 mm | 1,070 g | Ø 15 mm | Clearance: 28.5 × 32 mm
• 93RK/110 (w/o cylinder): 110 × 70 × 29 mm | 1,202 g | Ø 15 mm | Clearance: 34.5 × 21.5 mm
• 93RK/85 (w/o cylinder): 85 × 70 × 29 mm | 950 g | Ø 12 mm | Clearance: 24.5 × 18.5 mm

Design & Finish

• Colours: Chrome (83 variants) | Silver (93RK variants)
• Hardened special steel construction with NANO PROTECT™ coating engineered to withstand the most demanding physical and environmental attack conditions
• Closed shackle variant minimises exposed shackle length to reduce vulnerability to bolt cutter and lever attacks
• Sliding bolt monoblock design on 93RK variants eliminates conventional shackle vulnerability entirely
• Heavy-duty proportions and substantial weight reflect the uncompromising security specification of each variant

Additional Information

• Compatible with ABUS hasps: 130 Series (all variants)
• Compatible with ABUS chains: 12KS (all variants)
• LPCB approved cylinder options: ABUS Bravus, Vitess, and Zolit patented key systems
• Cylinder protection cap available upon request for additional moisture and dust resistance
• Removable shackle on 83/60-5 and 83/70 allows adaptation to different hasp and staple configurations
• All variants share 12KS chain and 130 Series hasp compatibility for consistent infrastructure specification

Packaging Information

• 1 × ABUS 83 Series Padlock — selected variant (supplied without cylinder)
• No keys included — cylinder and keys supplied separately via ABUS patented key system
