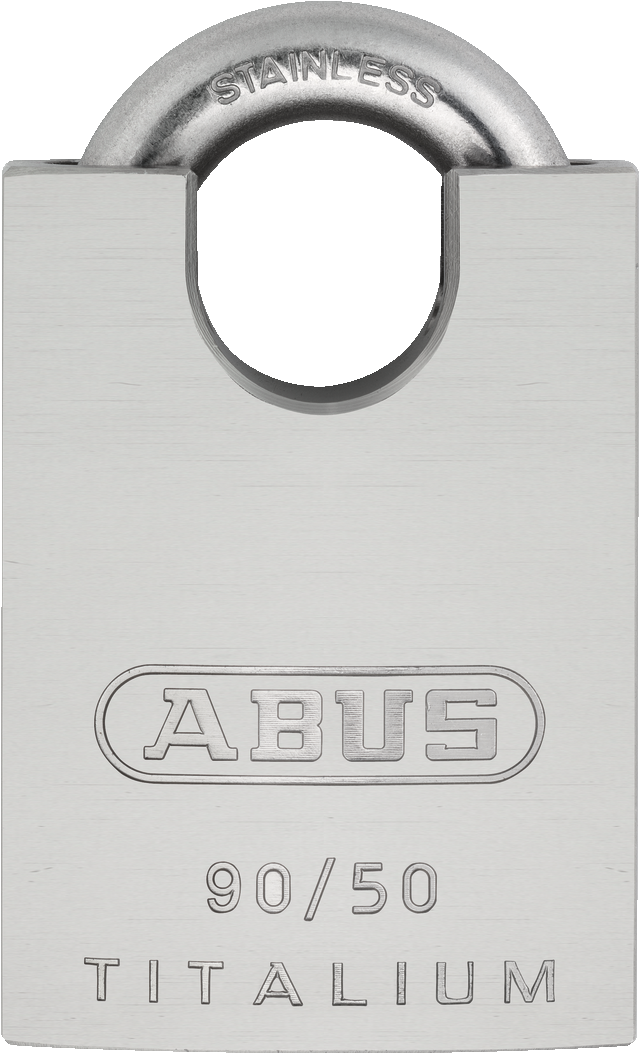

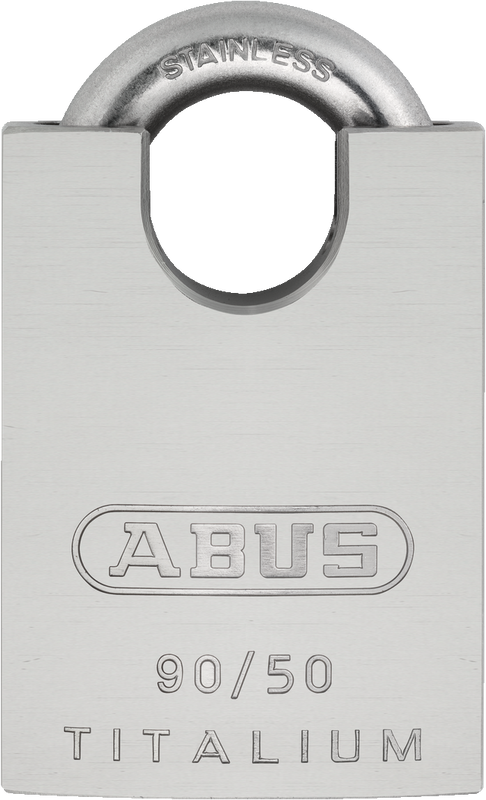

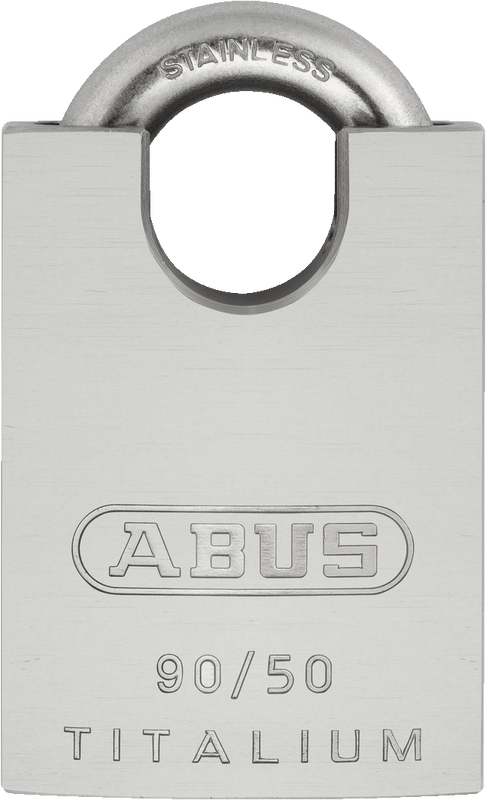

TITALIUM™ 90RK Series – Lightweight Closed Shackle Padlock

ABUS TITALIUM™ 90RK Series – Lightweight Closed Shackle Padlock with Interchangeable Cylinder (All Variants)

The ABUS TITALIUM™ 90RK Series Padlock delivers an outstanding combination of high-security closed shackle protection, lightweight TITALIUM™ construction, and exceptional corrosion resistance, making it an excellent choice for demanding indoor, outdoor, and marine applications where maximum attack resistance and minimal weight are both essential. Built from TITALIUM™ special aluminium alloy — a proprietary high-strength, low-weight alloy — and fitted with a high quality stainless steel closed shackle, the 90RK Series provides serious protection against the full range of physical attack methods while remaining remarkably light in use.

Designed with a double bolted locking mechanism for high resistance against pulling and torsion, an integrated shackle guard to protect against bolt cutter attacks, and a precision pin cylinder that is fully interchangeable for re-keying to match existing locks, the 90RK Series provides dependable high-security protection with outstanding installation flexibility. Key retaining functionality is standard, ensuring the lock can only be secured with the key present and retaining it until locked — preventing accidental lock-outs and improving security discipline. Integration into master key systems is supported, and the stainless steel shackle provides superior resistance to corrosion in marine and coastal environments.

Key Features

• Lock body made from TITALIUM™ special aluminium alloy for high security with low weight
• High quality stainless steel closed shackle for maximum corrosion and attack resistance
• Double bolted locking mechanism for high resistance against pulling and torsion
• Integrated shackle guard protects against bolt cutter attacks
• Stainless steel shackle provides increased resistance to corrosion including marine environments
• Precision pin cylinder for reliable and consistent locking performance
• Interchangeable cylinder — lock can be re-keyed or adapted to match existing locks
• Key retaining function standard — lock retains key until secured, preventing accidental lock-outs
• Integration into master key systems supported
• Available keyed alike across multiple locks
• Suitable for indoor, outdoor, and marine use

Variant Options

• 90RK/50: Closed shackle (50 mm body)

Ideal Applications

• Marine and coastal environments
• High-value equipment and asset protection
• Outdoor gates, storage units, and containers
• Industrial and commercial security requiring closed shackle protection
• Applications requiring key retaining discipline and re-keying flexibility

Specifications

• Product Type: Closed Shackle Padlock
• Locking Type: Keyed (Precision Pin Cylinder — Interchangeable)
• Security Rating: Level 8
• Indoor Use: Yes
• Outdoor Use: Yes
• Marine Use: Yes
• Safety Use: No
• High Security Use: No
• Material – Body: TITALIUM™ Aluminium Alloy
• Colour: Silver
• Material – Shackle: Stainless Steel
• Shackle Type: Closed
• Removable Shackle: No
• Keyed Alike Option: Yes
• Master Key Option: Yes
• Key Retaining: Yes — standard, lock retains key until secured
• Key Type: 55298
• Keys Supplied: 2

Dimensions & Weight

• 90RK/50: 50 × 81.5 × 23 mm | 310 g | Ø 9.5 mm | Clearance: 19.5 × 22.5 mm

Design & Finish

• Colour: Silver
• TITALIUM™ aluminium construction combines the strength of steel with a fraction of the weight
• Closed shackle design minimises exposed shackle length to significantly reduce vulnerability to bolt cutter and lever attacks
• Integrated shackle guard provides an additional physical barrier against targeted cutting attacks
• Clean silver finish suited to industrial, commercial, and marine installations

Additional Information

• Compatible with ABUS hasps: 110 Series
• Compatible with ABUS chains: 8KS
• Interchangeable cylinder allows re-keying or adaptation to existing lock and key systems without replacing the padlock body
• Key retaining function ensures the shackle cannot be closed without the key, reducing the risk of keys being misplaced or left unsecured
• Stainless steel closed shackle combined with TITALIUM™ body delivers high-security marine-rated performance at significantly reduced weight compared to traditional steel equivalents

Packaging Information

• 1 × ABUS TITALIUM™ 90RK/50 Closed Shackle Padlock
• 2 × Keys included
