TITALIUM™ 86TI Series – Lightweight Euro Cylinder Padlock

ABUS TITALIUM™ 86TI Series – Lightweight Euro Cylinder Padlock with NANO PROTECT™ Shackle (All Variants)

The ABUS TITALIUM™ 86TI Series Padlock delivers an outstanding combination of lightweight high-security construction and exceptional corrosion resistance, purpose-built for installations requiring a half euro profile cylinder for seamless integration into existing key systems. Built from TITALIUM™ special aluminium alloy — a proprietary high-strength, low-weight alloy — and fitted with a hardened steel shackle featuring NANO PROTECT™ plating, the 86TI Series provides serious security performance while remaining remarkably light in use.

Designed for use with a half euro profile cylinder 10/30 (40 mm) supplied separately, the 86TI Series allows master key and key retaining functionality to be determined by the euro cylinder fitted, providing outstanding flexibility for complex key management installations. The 86TIIB variants feature a stainless steel shackle for superior marine-grade corrosion resistance, and the 86TI/55 can be set to key retaining by adjusting the cam to 45 degrees. Standard and long shackle (HB) variants across both 45 mm and 55 mm body sizes ensure the 86TI Series covers a broad range of indoor, outdoor, and marine applications.

Key Features

• Solid lock body made from TITALIUM™ special aluminium alloy for high security with low weight
• Hardened steel shackle with NANO PROTECT™ plating for increased corrosion resistance
• Designed for use with a half euro profile cylinder 10/30 (40 mm) — supplied without cylinder
• Master key and key retaining functionality dependent on the euro cylinder fitted
• 86TI/55 can be set to key retaining by adjusting the cam to 45 degrees
• 86TIIB variants feature stainless steel shackle for marine-grade corrosion resistance
• Available keyed alike across multiple locks
• Available in 45 mm and 55 mm body sizes
• Long shackle (HB) variants available with 80 mm vertical clearance on 45 mm body
• Suitable for indoor and outdoor use (86TI) and marine use (86TIIB)

Variant Options

86TI Series (TITALIUM™ Body / Hardened Steel NANO PROTECT™ Shackle):

• 86TI/45: Standard shackle (45 mm body)

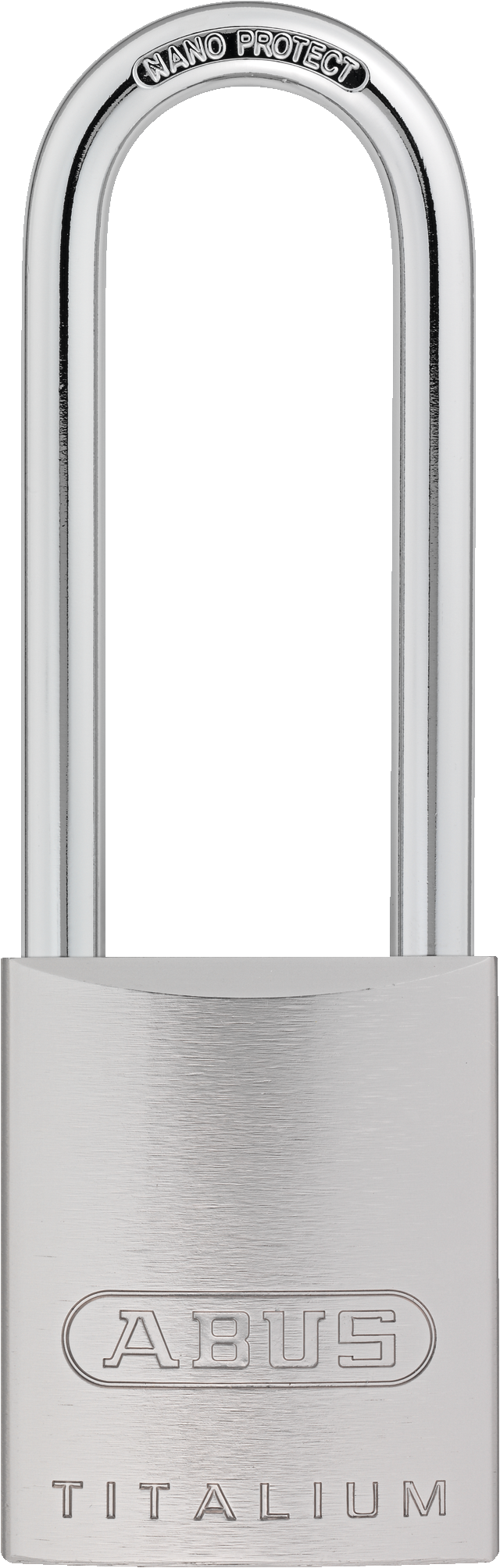

• 86TI/45HB80: Long shackle (80 mm vertical clearance)

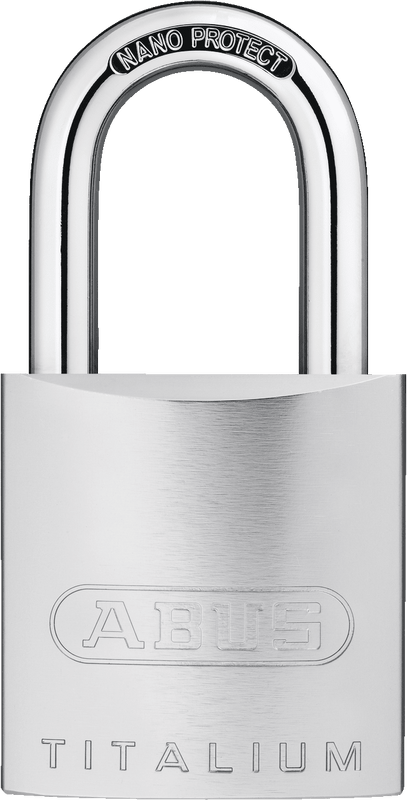

• 86TI/55: Standard shackle (55 mm body) — key retaining capable via cam adjustment

86TIIB Series (TITALIUM™ Body / Stainless Steel Shackle — Marine Grade):

• 86TIIB/45: Standard shackle (45 mm body)

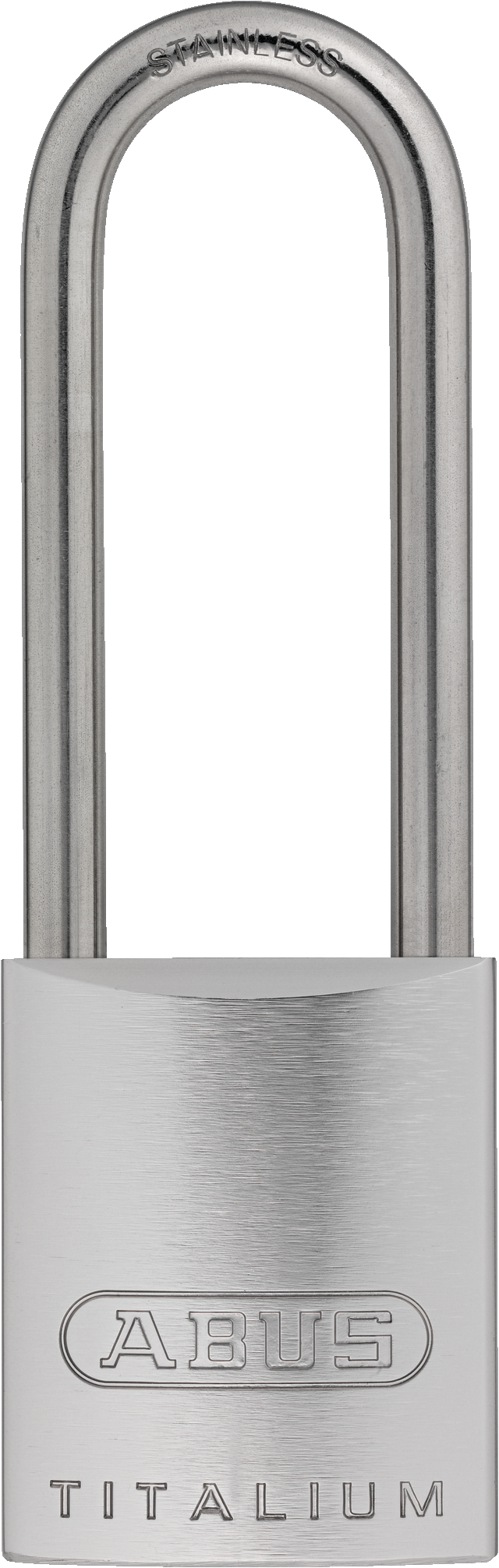

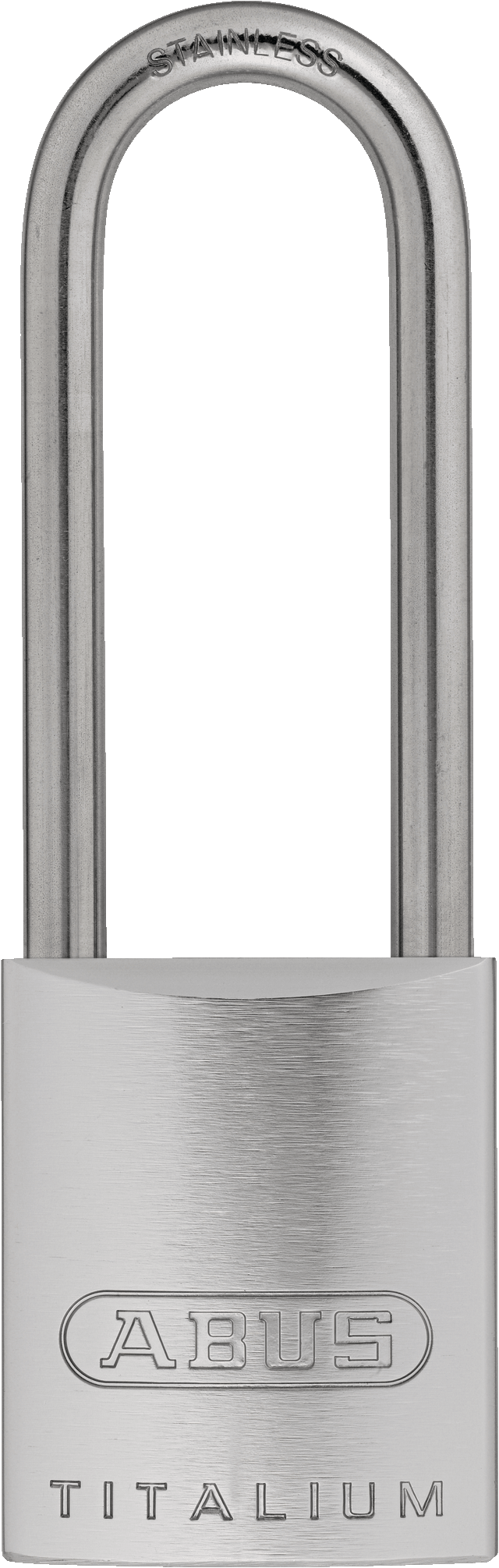

• 86TIIB/45HB80: Long shackle (80 mm vertical clearance)

Ideal Applications

• Installations requiring integration with existing euro cylinder key systems
• Outdoor gates, storage units, and containers
• Marine and coastal environments (86TIIB variants)
• Industrial and commercial security requiring lightweight high-security locking
• Applications requiring master key system integration via euro cylinder

Specifications

• Product Type: Euro Cylinder Padlock
• Locking Type: Half Euro Profile Cylinder 10/30 (40 mm) — supplied separately
• Security Rating: Level 7 (86TI/45, 86TI/45HB80, 86TIIB/45, 86TIIB/45HB80) | Level 8 (86TI/55)
• Indoor Use: Yes
• Outdoor Use: Yes
• Marine Use: No (86TI variants) | Yes (86TIIB variants)
• Safety Use: No
• High Security Use: No
• Material – Body: TITALIUM™ Aluminium Alloy (all variants)
• Colour: Silver (all variants)
• Material – Shackle: Hardened Steel with NANO PROTECT™ (86TI variants) | Stainless Steel (86TIIB variants)
• Shackle Type: Standard (Open) | Long (HB variants)
• Removable Shackle: No
• Keyed Alike Option: Yes (all variants)
• Master Key Option: Dependent on euro cylinder fitted (all variants)
• Key Retaining: Dependent on euro cylinder fitted (86TI/45, 86TI/45HB80, 86TIIB/45, 86TIIB/45HB80) | Adjustable via cam to 45° (86TI/55)
• Key Type: N/A (no cylinder supplied)
• Keys Supplied: None

Dimensions & Weight (All Variants)

• 86TI/45: 46.5 × 96.5 × 27 mm | 213 g | Ø 8 mm | Clearance: 26.5 × 32.5 mm
• 86TI/45HB80: 46.5 × 145 × 27 mm | 257 g | Ø 8 mm | Clearance: 26.5 × 80 mm
• 86TI/55: 55 × 107 × 27 mm | 277 g | Ø 9.5 mm | Clearance: 26.5 × 39.5 mm
• 86TIIB/45: 46.5 × 96.5 × 27 mm | 212 g | Ø 8 mm | Clearance: 26.5 × 32.5 mm
• 86TIIB/45HB80: 46.5 × 145 × 27 mm | 256 g | Ø 8 mm | Clearance: 26.5 × 80 mm

Design & Finish

• Colour: Silver (all variants)
• TITALIUM™ aluminium construction combines the strength of steel with a fraction of the weight
• NANO PROTECT™ shackle plating delivers superior corrosion resistance in harsh outdoor conditions
• Stainless steel shackle on 86TIIB variants provides maximum resistance to saltwater and marine corrosion
• Clean, modern silver profile suited to industrial, commercial, and marine installations

Additional Information

• Compatible with ABUS hasps: 100 Series (all variants)
• Compatible with ABUS chains: 8KS (86TI/45, 86TI/45HB80, 86TIIB/45, 86TIIB/45HB80) | 10KS (86TI/55)
• Designed for half euro profile cylinder 10/30 (40 mm) — cylinder must be sourced and fitted separately
• Key retaining and master key functionality entirely dependent on the specification of the euro cylinder fitted
• 86TI/55 key retaining capability activated by adjusting the cam to 45 degrees
• Long shackle (HB) variants ideal for extended reach applications
• TITALIUM™ alloy delivers high-security performance without the weight penalty of traditional steel or brass padlocks

Packaging Information

• 1 × ABUS TITALIUM™ 86TI Series Padlock (selected variant — supplied without cylinder)
• No keys included — cylinder and keys sourced and supplied separately
