Steel 92 Series – Hardened Steel Sliding Bolt Monoblock Padlock

ABUS Steel 92 Series – Hardened Steel Sliding Bolt Monoblock Padlock with Rotating Shackle (All Variants)

The ABUS Steel 92 Series Padlock delivers exceptional high-security performance and outstanding attack resistance, making it an excellent choice for the most demanding commercial, industrial, and infrastructure applications where maximum physical protection is required. Built from a solid brass lock body with a steel jacket and a hardened alloy steel sliding bolt shackle that rotates under attack, the 92 Series combines the corrosion resistance of brass with the structural reinforcement of a steel casing to create a monoblock padlock of exceptional toughness and durability.

Designed with a rectangular lock body for special use cases, a hardened steel pin protecting the narrow side of the lock body against saw attacks, and an automatic locking function allowing convenient locking without a key, the 92 Series provides uncompromising protection against the full range of physical attack methods. Purpose-designed for applications including roller shutters, large containers, warehouses, garages, lorries, and high-security perimeter gates, the 92 Series is available in two substantial body sizes to match the required level of protection.

Key Features

• Solid brass lock body with steel jacket for combined corrosion resistance and structural reinforcement
• Hardened alloy steel sliding bolt shackle for exceptional cut and pull resistance
• Rotating shackle design defeats attack attempts by spinning under force
• Rectangular lock body design for special use cases and non-standard installations
• Hardened steel pin protects the narrow side of the lock body against saw attacks
• Automatic locking function (push-down shackle, no key required)
• High security classification across all variants
• Available keyed alike across multiple locks
• Suitable for indoor and outdoor use
• Available in 65 mm and 80 mm body sizes

Variant Options

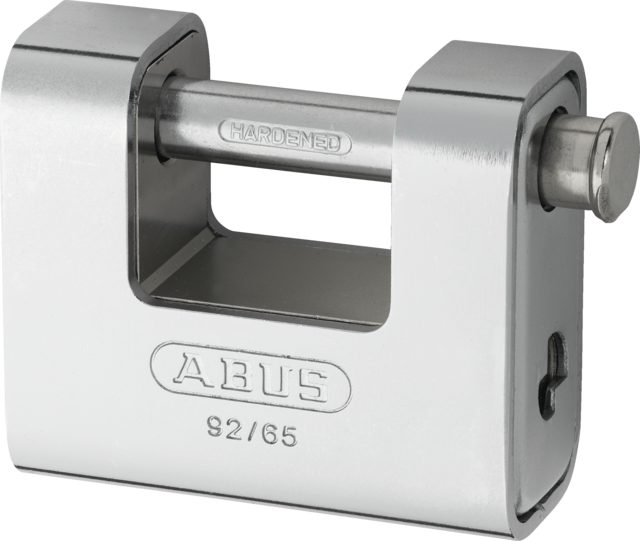

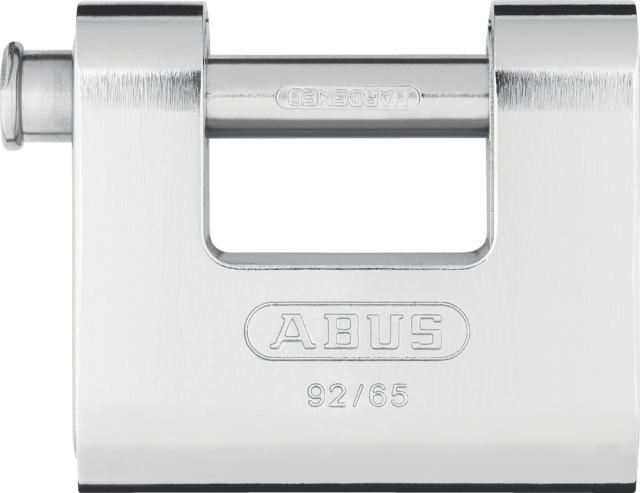

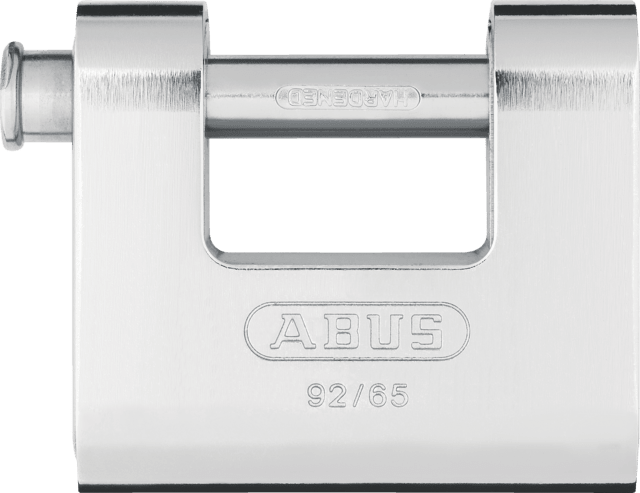

• 92/65: Sliding bolt shackle (65 mm body)

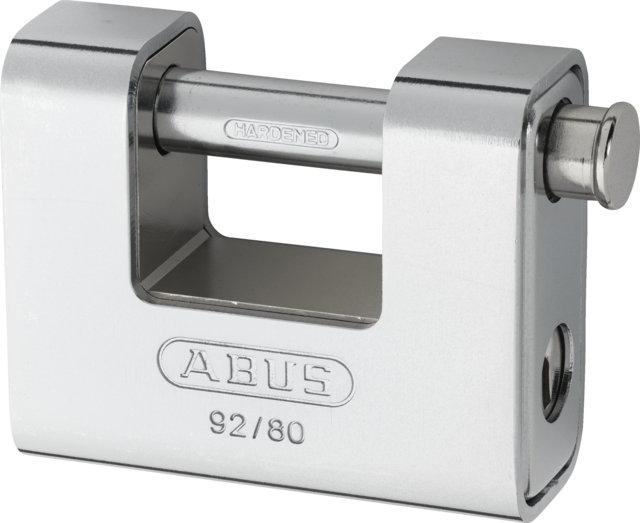

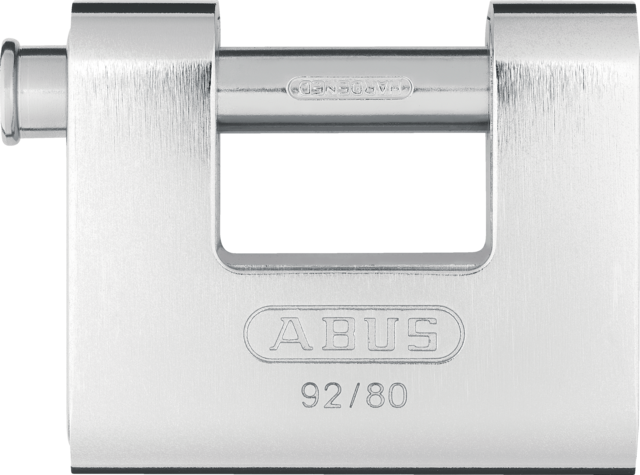

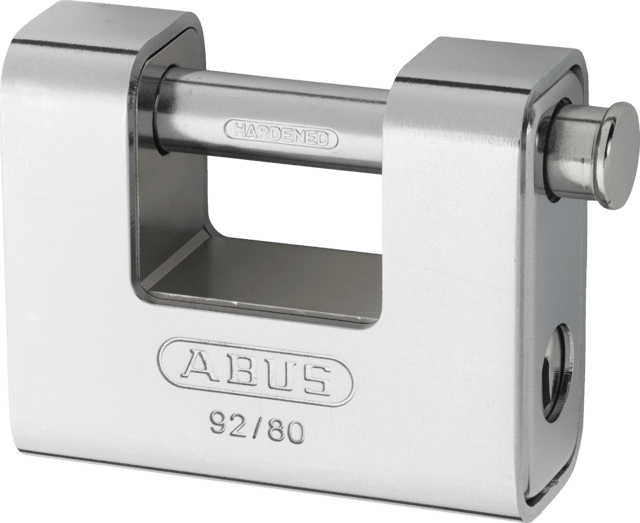

• 92/80: Sliding bolt shackle (80 mm body)

Ideal Applications

• Roller shutters and industrial doors
• Large containers and warehouses
• Garages and commercial storage facilities
• Lorries and heavy transport security
• High-security perimeter gates and fencing

Specifications

• Product Type: Hardened Steel Sliding Bolt Monoblock Padlock
• Locking Type: Keyed (Precision Cylinder)
• Security Rating: Level 7 (92/65) | Level 8 (92/80)
• Indoor Use: Yes
• Outdoor Use: Yes
• Marine Use: No
• Safety Use: No
• High Security Use: Yes (all variants)
• Material – Body: Solid Brass / Steel Jacket
• Colour: Silver
• Material – Shackle: Hardened Alloy Steel
• Shackle Type: Sliding Bolt
• Removable Shackle: No
• Keyed Alike Option: Yes (all variants)
• Master Key Option: No
• Key Retaining: No
• Key Type: 00906 (92/65) | 02703 (92/80)
• Keys Supplied: 2

Dimensions & Weight (All Variants)

• 92/65: 66.5 × 58 × 28 mm | 564 g | Ø 10 mm | Clearance: 33 × 14 mm
• 92/80: 78 × 65 × 29.5 mm | 797 g | Ø 12 mm | Clearance: 37 × 17 mm

Design & Finish

• Colour: Silver
• Solid brass core with steel jacket construction delivers maximum structural integrity combined with natural corrosion resistance
• Low-profile sliding bolt design minimises exposed shackle for reduced vulnerability to attack
• Rectangular monoblock body profile purpose-engineered for special use cases and heavy-duty industrial installations

Additional Information

• Compatible with ABUS hasps: 115 Series (all variants)
• Compatible with ABUS chains: 10KS (92/65) | 12KS (92/80)
• Rotating shackle design significantly reduces the effectiveness of bolt cutter and saw attacks
• Hardened steel anti-saw pin provides an additional layer of protection on the lock body
• Steel jacket reinforcement adds structural rigidity to the brass core for enhanced resistance to impact and deformation attacks
• Monoblock construction eliminates weak points typically found at the shackle heel of conventional padlocks

Packaging Information

• 1 × ABUS Steel 92 Series Padlock (selected variant)
• 2 × Keys included
