102x76x3mm Stainless Steel Lift Off Hinge, Grade 13, Radius

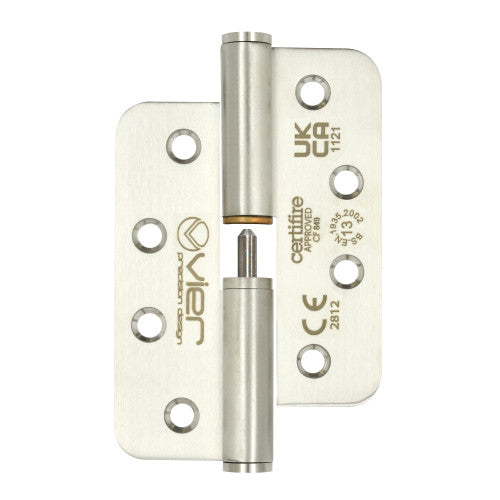

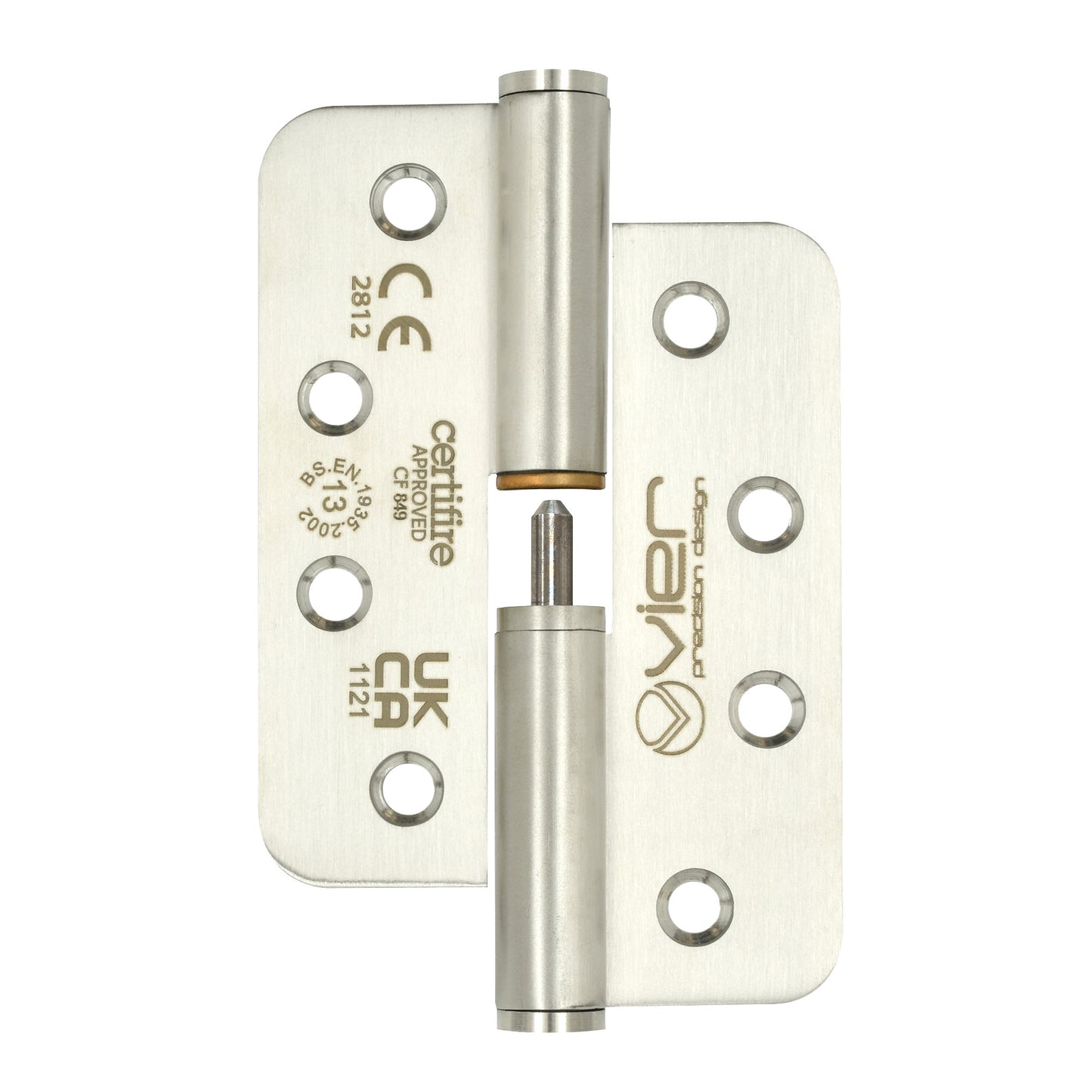

102 x 76 x 3mm Stainless Steel Lift Off Hinge – Grade 13 Radius

The 102 x 76 x 3mm Stainless Steel Lift Off Hinge – Grade 13 Radius is a high-performance hinge solution designed for commercial and fire-rated door applications where quick door removal and reliable durability are essential. Featuring a radiused profile and lift-off functionality, this hinge allows convenient door removal for maintenance and servicing while maintaining smooth and secure operation.

Manufactured from durable Grade 201 stainless steel, the hinge is template drilled for straightforward installation and is available in both left-hand and right-hand configurations. Successfully tested to relevant fire and performance standards, it is suitable for timber fire doors up to 60 minutes.

Key Features

• Lift off hinge design for convenient door removal
• Manufactured from Grade 201 stainless steel
• Radiused profile styling
• Template drilled for easy installation
• Available in left-hand and right-hand versions
• Suitable for commercial and fire-rated door applications
• Successfully tested to BS EN 1935:2002 Grade 13
• Successfully fire tested to BS EN1634-1 standards
• Suitable for timber fire doors up to 60 minutes
• CE marked, UKCA marked, and CERTIFIRE approved

Available Finish

• Satin Stainless

Available Handed Versions

• Left Hand
• Right Hand

Specifications

• Product Type: Lift Off Hinge
• Hinge Size: 102 x 76 x 3mm
• Material: Grade 201 Stainless Steel
• Profile: Radius
• Installation: Template Drilled
• Handing Options: Left Hand / Right Hand
• Compliance Standard: BS EN 1935:2002
• Grade: Grade 13
• Fire Rating: FD60
• Certifications: CE AC10276, UKCA AC10317, CERTIFIRE CF849

Suitable Applications

• Commercial buildings
• Healthcare and hospital environments
• Educational facilities
• Timber fire-rated doors
• Maintenance-access door systems
• High-traffic interior doors
