Ermetika xREVERx Frameless Reversible Swing Door
Selected Variation: 613mm x 1964mm
each
SKU: EXRSMY3

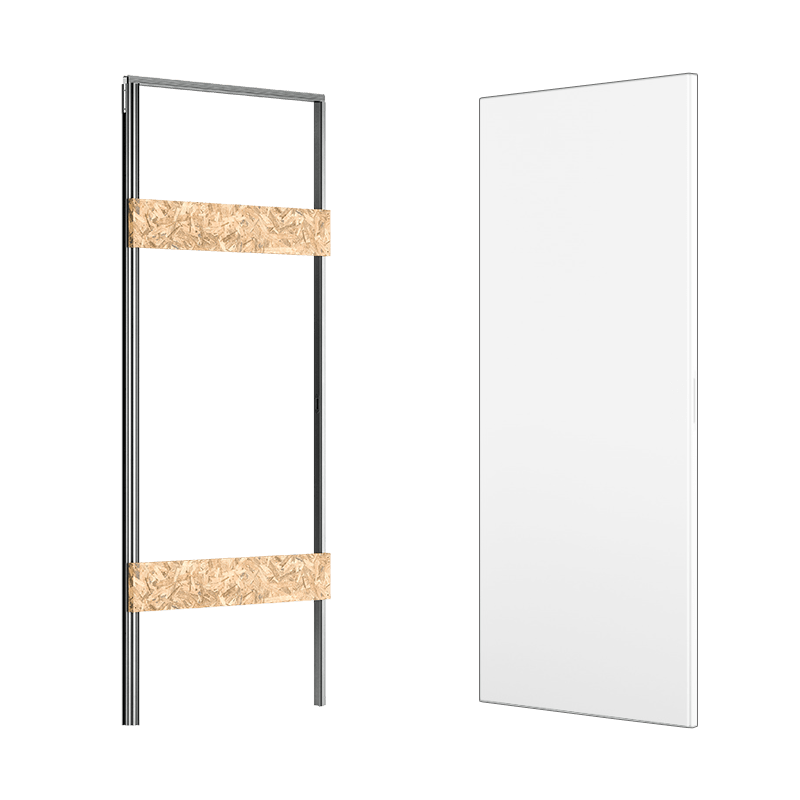

Ermetika xREVERx Frameless Reversible Swing Door System
The Ermetika xREVERx is a fully frameless, reversible hinged door system designed to offer maximum flexibility and contemporary aesthetics. Supplied as a complete package—including door and frame—the xREVERx system allows the door to open left or right with a push or pull motion simply by rotating the frame during installation.
With no visible jambs or architraves, the xREVERx delivers a clean, minimalist appearance ideal for modern architectural spaces. It is available in standard sizes and suitable for both plastered and plasterboard walls. The door is pre-finished in white B011, ready to paint or wallpaper for complete design freedom, and provides a solid 25 dB acoustic performance.
Key Features
- Frameless, architrave-free design for a clean minimalist appearance
- Fully reversible system – push or pull, left or right opening
- Compatible with timber, metal, and masonry walls
- Door pre-finished in white B011, ready to paint or wallpaper
- 25 dB acoustic insulation for enhanced soundproofing
- Supplied with lock, strike plate, and 3x Anselmi Concealed Hinges
- Upgrade options available: Bathroom Lock, Euro Lock, Key Sashlock
- Optional antique brass and bronze finish locks with aluminium strike plates
Product Information
-
Core Options:
- Honeycomb Core: 1964mm height, 44mm thickness, widths: 600mm / 700mm / 800mm / 900mm
- Chipboard Core: 2024mm height, 44mm thickness, widths: 600mm / 700mm / 800mm / 900mm
- Lock Preparation: Door predrilled for 50mm backset lock cut-out
- Hinge & Strike: Frame pre-cut for hinges and strike plate
-
Supplied Hardware:
- 3 × Anselmi Concealed Hinges (for 40kg door)
- 1 × AGB Polaris 2XT Bathroom Lock (Satin Chrome) with strike plate
- Door Faces: Completely plain—handle cut-outs completed on site
Available Sizes
| Passage Size | Door Size | Overall Kit Size |
|---|---|---|
| 600 x 1970mm | 613 x 1964mm | 690 x 2000mm |
| 700 x 1970mm | 713 x 1964mm | 790 x 2000mm |
| 800 x 1970mm | 813 x 1964mm | 890 x 2000mm |
| 900 x 1970mm | 913 x 1964mm | 990 x 2000mm |
| 600 x 2030mm | 613 x 2024mm | 690 x 2060mm |
| 700 x 2030mm | 713 x 2024mm | 790 x 2060mm |
| 800 x 2030mm | 813 x 2024mm | 890 x 2060mm |
| 900 x 2030mm | 913 x 2024mm | 990 x 2060mm |
Specifications
- Product Type: Frameless Reversible Hinged Door System
- Category: Concealed Door Systems, Flush Doors
- Wall Compatibility: Plastered & plasterboard walls
- Finishing: Ready-to-paint white B011 surface
- Acoustic Rating: 25 dB
- Hardware Included: Hinges, lock, strike plate
- Customisation: Handle cut-out completed on site
- Opening Direction: Left/Right reversible; Push/Pull reversible
